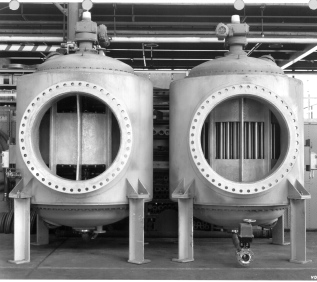

Home Management Products Technical Areas Specials Contact Us	R.P. ADAMS COMPANY Aftercoolers and Cyclone Separators. Heat Exchangers. Automatic Backwash Water Strainers. Porostone and Precoat Filters. Automatic Backwash Strainers Available articles include: Poro-edge is the Leading Edge, condensed from a seminar by James R. MacKay How Adams strains the muddy Mississippi, Spring 1998 issue of Adams Today Adams aftercoolers conserve energy for beer-maker, Spring 1993 issue of Adams Today ADTECH- ANALOG DIGITAL TECHNOLOGY Transmitters-Isolating, Two, Three, and Four Wire. Interface for Primary Sensors. Process Functions; Math Functions. Digital Indicators - Integrators/Totalizers Limit Alarms.	FMC TECHNOLOGIES Chiksan Swivel Joints, Weco Butterfly Valves and Wing Unions. Buttefly Valve Specials. Piggable Systems. Ha mer or Wing Unions. PALMER WAHL INSTRUMENTATION GROUP Digital, Analog and Infrared Thermometers. Thermowells. RTD's and Thermocouples. Laboratory Thermometers. Pressure Gauges. Pressure and Temperature Recorders. ROBERTSHAW INDUSTRIAL PRODUCTS Excalibur: Smart Level Devices. Capacitance Level Gauges. Level Controls for Solids and Liquids. Vibration Monitors. Centeron Distribution Management Systems.

Style 10 Three swivels with two elbows	Style 20 Single swivel coupling	Style 30 Single swivel with one elbow	Style 40 Single swivel with two elbows
Style 50 Two swivels with two elbows	Style 60 Two swivels with one elbow	Style 70 Two swivels with three elbows	Style 80 Three swivels with three elbows

Chiksan swivel joints come in a range of standard materials, and sizes from 3/8" to 72 inches or more.
When ordering non- standard items, or items to be used in new applications, the following information can help us serve you better.

1. size, pressure rating, product material and style
2. type of fluid(s) to be handled
3. operating temperature
4. type of end connections to be mated with
5. special material requirements
6. special documentation requirements
7. other application mechanical loads or movement

Contact us to discuss your standard or custom requirements, or to receive a brochure describing these joints.

Hammer Unions, also called Wing Unions, are quick makeup and break-out pipe and fitting connectors that consist of a male sub with a spherical sealing surface, a female sub with external acme threads, and a wing nut with internal acme threads to hold the components together. A safety bulletin describing the general categories of hammer union connection and component mismatches is available from FMC.
